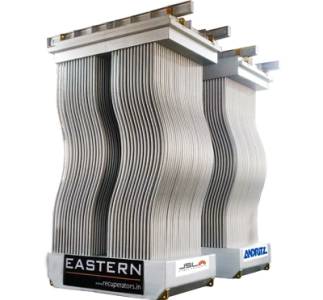

Convection Recuperators: Boost Efficiency and Reduce Energy Costs

Convection recuperators are high-performance heat exchangers designed to significantly improve the energy efficiency of industrial processes by recovering waste heat. They utilize the principle of convection to transfer heat from a hot exhaust gas stream to a cooler incoming air or gas stream, preheating the latter and reducing the energy required for the main process. This translates to substantial cost savings, reduced emissions, and a smaller environmental footprint.

How they work:

Convection recuperators employ a counterflow or crossflow design to maximize heat transfer efficiency. The hot exhaust gases flow through one section of the recuperator, while the cooler incoming air or gas flows through a separate, but closely situated, section. The heat from the exhaust gases is transferred to the cooler stream through the metallic walls separating the two flows. This transfer happens through convection, where heat is transferred by the movement of fluids. The design minimizes mixing between the two streams, ensuring high transfer efficiency and preventing contamination.

Key Features & Benefits:

• Significant Energy Savings: Recover a substantial percentage (typically 20-70%) of waste heat, drastically reducing fuel consumption and operating costs.
• Reduced Emissions: By lowering energy consumption, convection recuperators contribute to a significant decrease in greenhouse gas emissions and other pollutants.
• Improved Process Efficiency: Preheating the incoming air or gas stream leads to faster heating times, increased process efficiency, and enhanced productivity.
• Compact Design: Available in various sizes and configurations to fit diverse applications and space constraints.
• Durable Construction: Manufactured from high-quality, corrosion-resistant materials designed for long-term operation in demanding industrial environments.
• Low Maintenance: Simple design and robust construction minimize maintenance requirements and downtime.
• Versatile Applications: Suitable for a wide range of industrial processes, including:
  • Furnaces: Preheating combustion air for increased efficiency and reduced fuel consumption.
  • Kilns: Preheating combustion air and process gases.
  • Incinerators: Recovering heat from exhaust gases.
  • Heat Treating: Improving the efficiency of heat treatment processes.
  • Drying Processes: Preheating the drying air.

Types of Convection Recuperators:

• Shell and Tube Recuperators: Feature a shell enclosing a bundle of tubes, with one fluid flowing through the tubes and the other flowing across the shell. This design offers high heat transfer surface area and good efficiency.
• Plate-Fin Recuperators: Utilize a series of stacked plates with integrated fins to increase the heat transfer surface area. They are compact and lightweight, making them suitable for space-constrained applications.
• Rotary Regenerative Recuperators: Employ a rotating matrix that alternately comes into contact with the hot and cold streams, resulting in very high efficiency. However, they are more complex and require more maintenance.

Material Options:

The materials used in the construction of convection recuperators are carefully selected to withstand the operating temperatures and corrosive environments of the specific application. Common materials include stainless steel, high-temperature alloys, and ceramic materials.

Choosing the Right Recuperator:

Selecting the optimal convection recuperator requires careful consideration of factors such as:

• Process parameters: Gas flow rates, temperatures, and pressures.
• Space constraints: Available space for installation.
• Budget: Capital and operating costs.
• Maintenance requirements: Ease of access for cleaning and inspection.

Contact our team of experts to discuss your specific requirements and find the perfect convection recuperator to optimize your process and maximize your return on investment.
