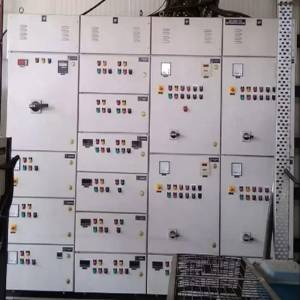

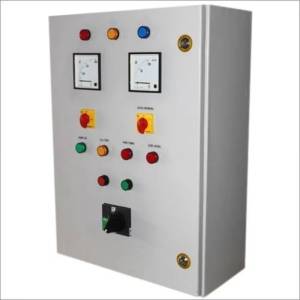

Robust & Reliable Power Distribution Panels (PDPs)

The Critical Hub for Your Electrical Infrastructure

Our Power Distribution Panels (PDPs) are meticulously engineered systems designed to be the central nervous system of your electrical network. They safely and efficiently receive, distribute, monitor, and protect electrical power from the main supply to various circuits and loads within commercial, industrial, and institutional facilities. Built for durability, safety, and performance, our PDPs ensure reliable operation and optimal power management for your critical applications.

⚡ Key Features & Engineering Excellence

• Comprehensive Circuit Protection:
  • Integrated with high-quality Moulded Case Circuit Breakers (MCCBs), Miniature Circuit Breakers (MCBs), and Air Circuit Breakers (ACBs) for superior protection against overloads, short circuits, and ground faults.
  • Selectable trip settings and adjustable thermal/magnetic releases for precise coordination.
• High-Conductivity Busbar System:
  • Utilizes high-grade electrolytic copper or aluminum busbars, precisely sized for current capacity and short-circuit withstand rating.
  • Fully insulated busbar arrangements to enhance safety and prevent accidental contact.
• Robust Enclosure & Construction:
  • Fabricated from heavy-gauge, cold-rolled mild steel (CRCA) or stainless steel, offering exceptional mechanical strength and corrosion resistance.
  • IP-rated enclosures (e.g., IP42, IP54, IP65) for protection against dust, water ingress, and environmental factors.
  • Powder-coated finish for enhanced durability and aesthetic appeal.
• Advanced Metering & Monitoring:
  • Integrated digital multi-function meters provide real-time data for voltage, current, frequency, power factor, active/reactive power, and energy consumption.
  • Optional energy management systems (EMS) with communication protocols (Modbus RTU/TCP, Profibus, Ethernet) for remote monitoring and data logging.
• Surge Protection Devices (SPDs):
  • Optional or integrated SPDs to safeguard sensitive electronic equipment from transient overvoltages and lightning strikes.
• Flexible & Modular Design:
  • Scalable architecture allows for easy expansion and modification to accommodate future power demands or system upgrades.
  • Various compartment configurations (e.g., Form 2, 3b, 4b) for enhanced safety and segregation of functional units.
• Enhanced Safety Features:
  • Clearly labeled circuits, warning signs, and comprehensive wiring diagrams for safe operation and maintenance.
  • Robust earthing and grounding systems for personnel safety and equipment protection.
  • Door interlocks, shutters, and locking mechanisms to prevent unauthorized access.
• Optimal Cable Management:
  • Ample space for cable termination, bending radius, and dressing.
  • Multiple cable entry/exit options (top, bottom, side) with gland plates.

✨ Benefits for Your Operations

• Uncompromised Safety: Protects personnel, equipment, and assets from electrical hazards and faults.
• Optimized Power Management: Enables precise control, monitoring, and efficient distribution of power, reducing waste and operational costs.
• Maximized Uptime & Reliability: Robust construction and superior components minimize the risk of failures and costly downtime.
• Scalability & Future-Proofing: Easily adapts to changing power requirements and facility expansions, extending the panel's lifespan.
• Regulatory Compliance: Designed and manufactured to meet stringent international and local standards (e.g., IEC 61439-1&2, UL, NEMA), ensuring peace of mind.
• Simplified Maintenance: Easy access to components, clear labeling, and well-organized wiring facilitate quick troubleshooting and routine servicing.
• Energy Efficiency: Advanced metering capabilities support energy audits and help identify areas for consumption reduction.

🎯 Ideal Applications

Our Power Distribution Panels are indispensable across a wide range of sectors, including:

• Commercial Buildings: Office complexes, shopping malls, hotels, data centers.
• Industrial Facilities: Manufacturing plants, factories, processing units, warehouses.
• Infrastructure Projects: Water treatment plants, sewage facilities, transportation hubs (airports, railway stations).
• Healthcare: Hospitals, clinics, medical research facilities.
• Renewable Energy: Solar farms, wind power plants.
• Oil & Gas: Refineries, drilling platforms, pipeline operations.
• Utilities: Substations, power generation facilities.

⚙️ Technical Specifications (Typical/Customizable)

• Rated Voltage: Up to 690V AC / 1000V DC
• Rated Current: 100A to 6300A (main busbar rating)
• Short-Circuit Withstand Capacity (Icw): Up to 100kA for 1 second
• Frequency: 50/60 Hz
• Ingress Protection (IP Rating): IP42, IP54, IP55, IP65
• Enclosure Material: CRCA Steel (1.6mm - 3.0mm), Stainless Steel (SS304, SS316)
• Surface Finish: RAL 7035 (or custom) Powder Coated, 7-tank process
• Busbar Material: Electrolytic Copper (99.9% purity) or Aluminum
• Mounting Type: Floor Standing (Front/Rear Access), Wall Mounted
• Cable Entry: Top or Bottom (Gland Plate)
• Switchgear & Control Gear: Siemens, Schneider Electric, ABB, Eaton, Legrand, or as per customer specification.
• Standards & Compliance: IEC 61439-1&2, IS, UL, NEMA (depending on specific project requirements)
• Operating Temperature: -5°C to +50°C
• Humidity: Up to 95% non-condensing

🤝 Why Choose Our Power Distribution Panels?

• Expert Design & Engineering: Our team of experienced engineers designs panels tailored to your precise operational needs and safety standards.
• Premium Quality Components: We use only the highest-grade materials and reputable brands for all switchgear, busbars, and enclosures.
• Customization Capabilities: From dimensions and layouts to specific circuit requirements and communication protocols, we offer extensive customization.
• Rigorous Testing & Certification: Every panel undergoes comprehensive factory acceptance testing (FAT) to ensure performance, reliability, and safety before dispatch.
• Commitment to Safety: Safety is paramount in our design and manufacturing process, ensuring robust protection for both equipment and personnel.
• Dedicated Support: We provide end-to-end support, from initial consultation and design to installation guidance and after-sales service.

📞 Get a Custom Solution for Your Power Needs

Don't compromise on the heart of your electrical system. Contact us today to discuss your project requirements and let our experts design a Power Distribution Panel solution that guarantees safety, efficiency, and reliability for years to come.
