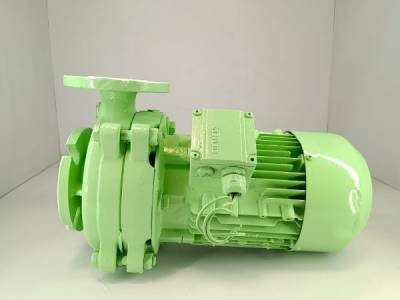

HEISHIN NE 40 OIL PUMP: Precision Lubrication & Fluid Transfer Solution

The HEISHIN NE 40 Oil Pump is engineered for demanding industrial environments, delivering reliable and efficient fluid transfer for critical lubrication, hydraulic, and circulation systems. Built with HEISHIN's renowned Japanese precision, the NE 40 ensures consistent performance, extended equipment life, and minimized downtime.

Key Features:

• Robust Gear Design: Utilizes a positive displacement external gear pump mechanism for consistent and pulseless flow delivery, even under varying system pressures.
• High Volumetric Efficiency: Optimized gear geometry and tight manufacturing tolerances reduce internal leakage, maximizing oil output per revolution and minimizing energy consumption.
• Durable Construction: Features a precision-machined cast iron body and hardened steel gears, ensuring exceptional resistance to wear, abrasion, and cavitation for extended operational life.
• Reliable Sealing System: Equipped with high-quality shaft seals (e.g., NBR, Viton optional) to prevent leaks and protect against the ingress of contaminants, maintaining fluid integrity.
• Low Noise & Vibration: Engineered for smooth and quiet operation, contributing to a more comfortable and compliant work environment.
• Versatile Fluid Compatibility: Suitable for a wide range of industrial oils, including lubricating oils, hydraulic oils, and various heat transfer fluids, with options for different seal materials.
• Flexible Mounting Options: Available in various configurations (e.g., flange mount, foot mount) for seamless integration into existing or new machinery and systems.
• Integrated Relief Valve (Optional): Can be specified with an internal pressure relief valve to protect the pump and system from over-pressure situations, enhancing safety and longevity.
• Easy Maintenance: Designed for straightforward servicing and reduced downtime, with readily accessible components and a robust, low-maintenance build.

Ideal Applications:

The HEISHIN NE 40 Oil Pump is a versatile solution for a multitude of industrial applications, including:

• Machine Tool Lubrication: Ensuring precise and continuous oil supply to bearings, gears, and slides.
• Engine & Gearbox Oil Circulation: Maintaining optimal lubrication and cooling in industrial engines, transmissions, and heavy-duty gearboxes.
• Hydraulic Power Units: Serving as a reliable charge pump or for auxiliary hydraulic functions.
• Filtration Systems: Circulating oil through filters to maintain fluid purity in industrial processes.
• Turbine & Compressor Lubrication: Delivering high-performance oil flow for critical rotating machinery.
• Industrial Oven & Heat Transfer Systems: Circulating heat transfer oils efficiently.
• General Industrial Fluid Transfer: Efficiently moving various oils and viscous fluids within manufacturing and processing plants.

Technical Specifications (Example - Actual specifications may vary based on model variant):

• Pump Type: External Gear Pump
• Nominal Displacement: Approx. 40 cm³/rev (e.g., 40 cc/rev)
• Max Flow Rate: Up to 60 L/min @ 1500 RPM (Actual flow depends on RPM and pressure)
• Max Operating Pressure: Up to 25 bar (360 psi)
• Max Operating Speed: 1800 RPM
• Fluid Viscosity Range: 10 cSt to 3000 cSt (typical operating range for industrial oils)
• Operating Temperature Range: -10°C to +80°C (14°F to 176°F)
• Port Sizes: G 3/4" or NPT 1" (example, other options available)
• Shaft Rotation: Clockwise / Counter-clockwise (reversible options typically available)
• Materials:
  • Casing: Cast Iron (FC200 or equivalent)
  • Gears: Hardened Steel (SCM415 or equivalent)
  • Shaft: Alloy Steel
  • Seals: NBR (standard), Viton (FKM) or others (optional)
• Mounting: Flange Mount (e.g., SAE 2-bolt), Foot Mount
• Weight: Approx. 15 kg (33 lbs)

Benefits for Your Operation:

• Unrivaled Reliability: Minimizes unexpected breakdowns and unscheduled maintenance, ensuring continuous and uninterrupted operation of your critical machinery.
• Cost Efficiency: High volumetric efficiency, coupled with durable construction, leads to lower energy consumption and significantly reduced total cost of ownership over the pump's lifespan.
• Extended Equipment Lifespan: Delivers consistent, high-quality lubrication, protecting your valuable machinery from premature wear and tear, and extending its service life.
• Optimized Performance: Precision engineering guarantees stable flow and pressure, which is crucial for sensitive industrial processes and maintaining optimal system performance.
• Reduced Environmental Impact: Efficient operation, leak-proof design, and robust construction contribute to a cleaner, safer work environment and minimize oil waste.

Why Choose the HEISHIN NE 40?

Investing in the HEISHIN NE 40 Oil Pump means choosing a product backed by decades of Japanese engineering excellence and a commitment to quality. You gain:

• HEISHIN Quality Assurance: A name synonymous with precision, durability, and consistent performance in industrial fluid handling.
• Operational Peace of Mind: Confidence that your critical systems are powered by a pump designed for the most demanding applications.
• Expert Support: Access to HEISHIN's global network for technical assistance, genuine spare parts, and application expertise.

Contact Us:

For detailed specifications, compatibility checks, or to request a quote for the HEISHIN NE 40 Oil Pump, please contact our sales team today. Let us help you find the perfect fluid transfer solution for your industrial needs.
