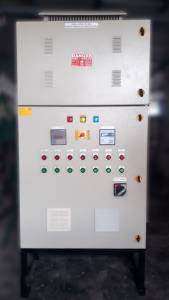

AMF Panel (Automatic Main Failure) - Uninterrupted Power, Uncompromised Performance

In today's power-dependent world, even a momentary power disruption can lead to significant financial losses, data corruption, and operational chaos. The AMF Panel (Automatic Main Failure) Panel is your critical line of defense, ensuring that your essential operations never skip a beat, regardless of mains power fluctuations or failures.

Designed for seamless integration with standby generators, our AMF Panels automatically monitor the incoming mains supply, initiate generator startup, transfer the electrical load, and manage the entire power transition process, all without manual intervention.

Key Features

• Intelligent Mains Monitoring: Continuously monitors all phases of the incoming utility power (voltage, frequency, phase sequence) for any deviations or failures.
• Automatic Generator Control:
  • Start/Stop: Automatically sends start/stop commands to the generator upon mains failure/restoration.
  • Pre-Heat/Cool-Down: Configurable pre-heat and cool-down cycles to ensure optimal generator performance and longevity.
  • Cranking Attempts: Multiple configurable cranking attempts with rest periods to ensure reliable generator startup.
• Seamless Load Transfer:
  • Automatic Transfer Switch (ATS) Integration: Manages the automatic transfer switch to seamlessly shift the load from mains to generator and vice-versa.
  • Configurable Delays: Adjustable delays for mains failure detection, generator start, load transfer, mains restoration detection, and generator cool-down.
• Advanced Microprocessor Control: Utilizes a high-performance industrial-grade microprocessor for reliable, precise, and fast decision-making.
• Comprehensive Generator Protection & Monitoring:
  • Over/Under Voltage, Over/Under Frequency: Protects connected equipment and the generator.
  • Over Current/Short Circuit: Integrated protection for both mains and generator supply.
  • High Engine Temperature, Low Oil Pressure: Critical generator engine protections.
  • Over/Under Speed, Failed to Start/Stop: Ensures generator health.
  • Battery Monitoring: Monitors generator battery voltage for optimal starting performance.
• User-Friendly Interface:
  • LCD Display: Clear, back-lit LCD screen providing real-time status, alarms, and operational parameters.
  • LED Indicators: Intuitive LEDs for quick visual status of mains available, generator running, load on mains, load on generator, and various alarm conditions.
  • Push Buttons: Easy navigation and parameter setting.
• Robust Enclosure:
  • IP-Rated: High ingress protection (e.g., IP54, IP65) for indoor or outdoor installations, protecting internal components from dust and water.
  • Material: Constructed from durable CRCA steel or stainless steel, powder-coated for corrosion resistance.
• Event Logging & Diagnostics: Stores historical event logs, alarms, and operational data for easier troubleshooting and maintenance.
• Manual Override: Option for manual control of the generator and transfer switch for testing and maintenance purposes.
• Remote Monitoring (Optional): Integration with SCADA, BMS, or cloud-based platforms for remote status monitoring and control via Modbus RTU/TCP, GSM/GPRS.

How It Works (Simplified Process)

1. Mains Failure Detection: The AMF Panel continuously monitors the incoming mains supply. Upon detecting a power failure, brownout, or phase imbalance outside configured limits.
2. Generator Start Sequence: After a pre-set delay, the panel initiates the generator startup sequence, including pre-heat (if configured) and cranking attempts.
3. Generator Stabilisation: Once the generator starts and reaches stable voltage and frequency, another pre-set delay ensures full readiness.
4. Load Transfer to Generator: The AMF Panel commands the ATS to disconnect the load from the failed mains and connect it to the generator supply.
5. Mains Restoration Detection: When stable mains power returns, the AMF Panel detects its presence.
6. Load Retransfer to Mains: After a configurable delay (to ensure mains stability), the panel commands the ATS to switch the load back to the mains supply.
7. Generator Cool-Down & Shutdown: The generator runs for a pre-set cool-down period without load, then receives a shutdown command.

Benefits

• Uninterrupted Operations: Ensures continuous power supply, preventing costly downtime and maintaining productivity.
• Automated Reliability: Eliminates the need for manual intervention, guaranteeing a rapid and reliable response to power outages.
• Equipment Protection: Protects sensitive electrical and electronic equipment from damaging power fluctuations and sudden shutdowns.
• Data Integrity: Safeguards critical data and prevents loss in servers, data centers, and IT infrastructure.
• Cost Savings: Reduces operational costs by eliminating manual switching, minimizing revenue loss due to downtime, and extending generator lifespan through controlled operation.
• Enhanced Safety: Prevents electrical hazards associated with manual switching and ensures safe operation of the generator.
• Peace of Mind: Provides assurance that your power supply is managed professionally and automatically.

Ideal For / Applications

• Hospitals & Healthcare Facilities: Essential for life-saving equipment, operating theaters, and critical patient care.
• Data Centers & IT Infrastructure: Prevents data loss, system crashes, and ensures continuous online services.
• Manufacturing & Industrial Plants: Maintains production lines, prevents spoilage, and protects sensitive machinery.
• Commercial Buildings: Offices, shopping malls, hotels, and banks requiring continuous lighting, HVAC, and security systems.
• Telecommunication Centers: Ensures uninterrupted network connectivity.
• Residential Complexes & High-Rise Buildings: For common area lighting, elevators, and water pumps.
• Any Facility Requiring Critical, Uninterrupted Power Supply.

Technical Specifications (General)

• Rated Voltage: 230V/400V AC, 3-Phase, 4-Wire (customizable)
• Rated Current: 63A up to 6300A (or as per project requirement)
• Frequency: 50/60 Hz
• Controller: Microprocessor-based digital AMF controller
• ATS Type: Contactor, Motorized Breaker, or Solenoid-operated options
• Enclosure Rating: IP54, IP65 (or as required)
• Material: CRCA Sheet Steel / Stainless Steel, Powder Coated
• Indicators: LCD Display, Multi-color LED Indicators
• Wiring: Copper busbar or cable termination, color-coded for safety
• Protections: Over/Under Voltage, Over/Under Frequency, Over Current, Short Circuit, Phase Sequence, Earth Fault, Engine Protections, etc.
• Standards: Conforms to IEC 60947-6-1, IS 13947, CE certified.
• Operating Temperature: -10°C to +50°C
• Humidity: Up to 95% non-condensing

Why Choose Our AMF Panel?

• Premium Quality Components: We use only industry-leading controllers, switchgear, and robust enclosures from reputable brands to ensure maximum reliability and longevity.
• Customization: Our AMF Panels are designed and manufactured to your specific site requirements, generator specifications, and desired features.
• Expert Engineering: Backed by a team of experienced engineers, we ensure optimal design, precise configuration, and seamless integration.
• Rigorous Testing: Every panel undergoes comprehensive testing and quality checks before dispatch to guarantee flawless performance.
• Dedicated Support: We provide complete pre-sales consultation, installation guidance, and reliable after-sales support.
• Compliance & Safety: Our panels adhere to the highest international safety and quality standards, ensuring safe and compliant operation.

Take Control of Your Power

Don't let power outages dictate your business continuity. Invest in an AMF Panel that offers unparalleled reliability, advanced control, and peace of mind.

Contact us today for a detailed consultation and a customized quote.
