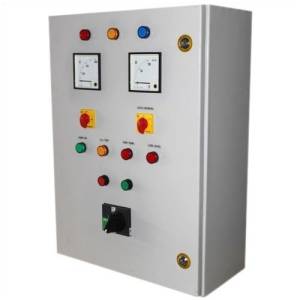

Dry Run Control Panel: Advanced Pump Protection System

Safeguard your valuable pumping equipment from the catastrophic effects of dry running with our state-of-the-art Dry Run Control Panel. Engineered for superior reliability and performance, this intelligent control system automatically detects low or no-water conditions, immediately shutting down your pump to prevent costly damage, extend operational lifespan, and minimize downtime.

Designed for a wide range of applications, from industrial processes and agricultural irrigation to municipal water systems and commercial building management, our Dry Run Control Panel is the ultimate solution for ensuring the continuous, safe, and efficient operation of your pumping infrastructure.

Key Features

• Intelligent Dry Run Detection: Utilizes advanced sensing technology (current monitoring, float switch, pressure switch, or level sensor inputs) to accurately detect the absence or insufficient flow of liquid.
• Automatic Pump Shutdown: Instantly disconnects power to the pump upon detection of a dry run condition, preventing overheating, cavitation, seal damage, and motor burnout.
• Adjustable Restart Logic:
  • Automatic Restart: Configurable timer for automatic restart attempts after a set delay, ideal for fluctuating water levels (e.g., well pumps).
  • Manual Reset: Option for manual reset after a fault, suitable for applications requiring operator intervention.
• Comprehensive Motor Protection: Beyond dry run, includes integrated protections for:
  • Overload Protection: Guards against excessive current draw.
  • Short Circuit Protection: Fuses or circuit breakers to protect against electrical faults.
  • Phase Failure/Unbalance (for 3-Phase models): Protects against damaging phase issues.
• Clear Status Indicators: Intuitive LED indicators for:
  • Power ON: Panel is receiving power.
  • Pump ON/Running: Indicates pump operating status.
  • Fault/Trip: Clearly signals a dry run or other fault condition.
• Robust & Weatherproof Enclosure: Housed in a durable, IP-rated (e.g., IP55, IP65) enclosure, providing excellent protection against dust, moisture, and harsh environmental conditions.
• User-Friendly Interface: Simple controls and easily accessible terminals for straightforward installation, configuration, and maintenance.
• Versatile Compatibility: Compatible with single-phase and three-phase pumps across a wide range of horsepower/kilowatt ratings.
• External Communication (Optional): Available with relay outputs for remote signaling to SCADA systems, building management systems (BMS), or alarm panels.

How It Works

The Dry Run Control Panel continuously monitors the operational parameters of your pump and/or the liquid level at the source. When a dry run condition is detected (e.g., current draw drops below a set threshold, a float switch indicates low level, or a pressure switch senses a drop below minimum operating pressure), the panel's intelligent logic immediately cuts power to the pump. After a user-defined delay, the panel can attempt an automatic restart. If the dry run condition persists, the panel will typically enter a locked-out state, requiring manual reset or a longer cooldown period, to prevent further damage.

Unmatched Benefits

• Extended Pump Lifespan: Significantly reduces wear and tear, preventing premature pump failure.
• Reduced Maintenance & Downtime: Avoids costly repairs and emergency service calls.
• Significant Cost Savings: Protects your investment in expensive pumping equipment and reduces operational expenses.
• Enhanced Operational Reliability: Ensures consistent and dependable fluid transfer without risk of self-destruction.
• Energy Efficiency: Prevents the pump from running inefficiently and wasting energy when there's no fluid to move.
• Peace of Mind: Operates with confidence, knowing your critical pumping assets are actively protected.

Ideal Applications

• Water Supply Systems: Deep wells, boreholes, reservoirs, storage tanks, boosting stations.
• Irrigation Systems: Agricultural fields, golf courses, landscaping.
• Industrial Processes: Cooling towers, chemical transfer, process water circulation.
• HVAC & Cooling: Chilled water systems, condenser water loops.
• Wastewater & Sump Pumping: Sewage lift stations, storm drain sumps.
• Building Management: Domestic water supply, fire suppression pre-charge systems.

Technical Specifications (Varies by Model)

Why Choose Our Dry Run Control Panel?

We are committed to delivering pump protection solutions that combine cutting-edge technology with robust construction. Our Dry Run Control Panels are:

• Engineered for Reliability: Built with high-quality components for long-term, trouble-free operation in demanding environments.
• Technologically Advanced: Incorporates the latest in sensing and control logic for precise and rapid response.
• Easy to Integrate: Designed for straightforward installation and compatibility with existing pump systems.
• Exceptional Value: A critical investment that prevents expensive pump failures and minimizes operational costs.
• Backed by Support: Our team of experts is available to assist with selection, installation, and technical queries.

Get Started Today!

Protect your investment and ensure uninterrupted, safe operation of your pumping systems.

Contact us now for a personalized quote or to learn more about how our Dry Run Control Panel can provide unparalleled protection for your critical pumping infrastructure.
