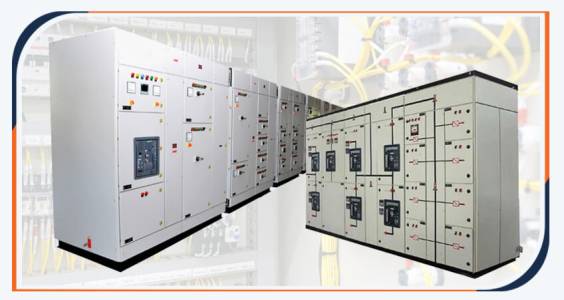

[Your Brand Name Here] Industrial Drive Panel: Precision Motor Control & Protection

Overview

Modern industrial operations demand precise, efficient, and reliable control over electric motors. The [Your Brand Name Here] Industrial Drive Panel is a complete, pre-engineered, and factory-tested solution designed to meet these exact needs. Integrating advanced variable frequency drive (VFD) technology with robust protective and control components within a durable enclosure, our Drive Panel delivers unparalleled motor control, significant energy savings, and enhanced operational reliability for a wide range of industrial applications.

Experience the benefits of streamlined installation, superior performance, and extended motor life with a single, integrated package.

Key Features

• High-Performance Variable Frequency Drive (VFD):
  • Integrated leading-brand VFDs offering precise speed, torque, and acceleration/deceleration control.
  • Supports V/Hz, Sensorless Vector Control, and optional Closed-Loop Vector Control for optimal performance.
  • Wide power range from [Specific HP/kW Range, e.g., 0.5 HP to 500 HP].
• Comprehensive Motor & System Protection:
  • Main input circuit breaker or fused disconnect for complete system isolation and overcurrent protection.
  • Integrated motor overload, short-circuit, ground fault, over-voltage, and under-voltage protection.
  • Thermal management system (fans, air conditioning units, or heat exchangers) to maintain optimal internal temperatures.
• Robust Industrial Enclosure:
  • Heavy-duty steel or stainless steel construction for maximum durability in harsh environments.
  • Available in various NEMA/IP ratings including NEMA 12 (IP54), NEMA 4 (IP66), and NEMA 4X (IP66) for dust, water, and corrosion resistance.
  • Lockable doors with safety interlocks for enhanced security and operator safety.
• Intuitive HMI & Local Control:
  • Front-mounted start/stop pushbuttons, speed potentiometer, and selector switches (e.g., Auto/Manual, Local/Remote).
  • Pilot lights for indicating operational status (e.g., Run, Stop, Fault).
  • Integrated HMI (Human Machine Interface) display for easy parameter setting, monitoring, and diagnostics.
• Advanced Connectivity:
  • Multiple standard communication protocols supported: Modbus RTU, Profibus, Ethernet/IP, PROFINET, DeviceNet, and more.
  • Seamless integration with existing SCADA, DCS, or PLC systems.
  • Remote I/O capabilities for distributed control.
• Pre-Wired & Factory Tested:
  • All internal components meticulously wired and terminated to industry standards.
  • Each panel undergoes rigorous factory acceptance testing (FAT) to ensure flawless operation upon installation.
  • Reduces on-site installation time and minimizes commissioning efforts.
• Integrated Safety Features:
  • Emergency Stop (E-Stop) pushbutton for immediate system shutdown.
  • Door interlocks to prevent access to live components during operation.
  • Optional Safe Torque Off (STO) functionality for compliance with machine safety directives.
• Modular & Expandable Design:
  • Designed for future upgrades and easy integration of additional components (e.g., PLCs, soft starters, relays, terminal blocks).
  • Spacious internal layout for simplified maintenance and troubleshooting.

Benefits

• Significant Energy Savings: Optimize motor speed to match load requirements, drastically reducing power consumption and operational costs.
• Enhanced Process Control: Achieve precise control over production processes, leading to improved product quality and consistency.
• Extended Motor Life: Soft starting and stopping reduces mechanical stress, wear, and tear on motors and connected equipment, prolonging their lifespan.
• Simplified Installation & Commissioning: A "plug-and-play" solution that minimizes on-site wiring, reduces labor costs, and accelerates project timelines.
• Maximized Uptime & Reliability: Robust protection features and durable construction ensure continuous operation and reduce costly downtime.
• Improved Safety: Integrated safety mechanisms protect personnel and prevent equipment damage.
• Data-Driven Decisions: Real-time monitoring and diagnostic data accessible via HMI and communication networks enable proactive maintenance and performance optimization.
• Compliance & Standards: Designed and built to meet relevant industrial standards and certifications (e.g., UL, CE, CSA).

Typical Applications

The [Your Brand Name Here] Industrial Drive Panel is ideal for controlling motors in a wide array of demanding applications, including:

• Pumps: Water/Wastewater Treatment, HVAC, Irrigation, Booster Pumps.
• Fans & Blowers: Industrial Ventilation, Exhaust Fans, HVAC Air Handlers.
• Conveyors & Material Handling: Production Lines, Assembly Automation, Baggage Handling.
• Mixers & Agitators: Chemical Processing, Food & Beverage, Pharmaceutical.
• Compressors: Air Compressors, Refrigeration Systems.
• Machine Tools: Lathes, Milling Machines, Grinders (where VFD control is required).
• Extruders: Plastic, Rubber, and Food Processing.

Technical Specifications (Customizable)

• Input Voltage: 3-Phase, 208V AC to 690V AC
• Output Power: 0.5 HP (0.37 kW) to 500 HP (370 kW)
• Enclosure Material: Powder-coated Carbon Steel, 304/316 Stainless Steel
• Enclosure Rating: NEMA 12, NEMA 4, NEMA 4X (IP54, IP66)
• Control Type: V/Hz, Sensorless Vector, Closed-Loop Vector
• Communication Protocols: Modbus RTU, Profibus, Ethernet/IP, PROFINET, DeviceNet, BACnet, LonWorks, etc.
• Operating Temperature: -10°C to +50°C (14°F to 122°F)
• Ambient Humidity: 5% to 95% RH (non-condensing)
• Certifications: UL 508A, CE, CSA (as specified)
• Cooling System: Integrated Fans, Air Conditioner, or Heat Exchanger

Why Choose [Your Brand Name Here]?

• Expert Engineering: Our panels are designed by experienced engineers with deep expertise in industrial automation and motor control.
• Premium Components: We utilize only high-quality, reputable components from trusted manufacturers for maximum reliability.
• Customization Capabilities: We offer tailored solutions to meet your unique application requirements, including specific component brands, I/O configurations, and enclosure designs.
• Dedicated Support: From initial consultation and design to installation and after-sales service, our team is committed to your success.

Ready to Optimize Your Motor Control?

Take the next step towards enhanced efficiency, reliability, and control in your industrial processes.

Contact us today for a personalized consultation or to request a quote for your custom Drive Panel solution.

[Link to your Contact Page] | [Link to your Product Catalog]
